End Caps for Food, Dairy, and Beverage

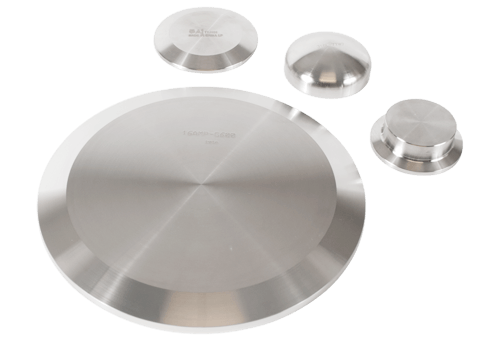

Complete your sanitary process system with sanitary end caps and thermometer caps from Central States Industrial (CS). We stock a wide variety of sizes, types, and styles in our three US warehouses.
Alfa Laval's 304 and 316L end caps are compliant with the 3-A sanitary standard; all are surfaced polished to 32 microinch Ra or better. Alfa Laval continues to lead the industry with fittings that are produced to the high standards you’ve come to expect: durability, problem-free welding and assembly, and the highest possible strength.
For end caps that meet BPE specifications, check out ourBPE End Caps. CSI also offersAL-6XN Alloy® End CapsandHastelloy® C-22® End Capsfor more corrosion resistance.
Some items are 3-A approved as noted.
Alfa Laval is a leading global supplier of products and solutions within the key technology areas of heat transfer, separation, and fluid handling.
Tri-Clamp®End Caps16AMP-Size-Material-Finish
| 304 Material Part # (7 finish) |
316L Material Part # (7 finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| - | 16AMP-0.75-316L-7 | ¾ | 0.19 | 0.98 |
| 16AMP-1.5-304-7 | 16AMP-1.5-316L-7 | 1½ | 0.25 | 1.98 |
| 16AMP-2-304-7 | 16AMP-2-316L-7 | 2 | 0.25 | 2.52 |
| 16AMP-2.5-304-7 | 16AMP-2.5-316L-7 | 2½ | 0.25 | 3.05 |
| 16AMP-3-304-7 | 16AMP-3-316L-7 | 3 | 0.25 | 3.58 |
| 16AMP-4-304-7 | 16AMP-4-316L-7 | 4 | 0.31 | 4.69 |
| 16AMP-6-304-7 | 16AMP-6-316L-7 | 6 | 0.44 | 6.58 |
The 16AMP is 3-A approved.

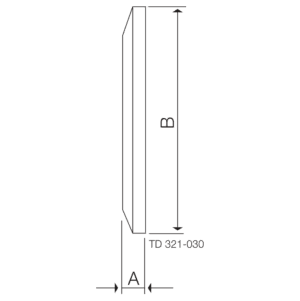

Tri-Clamp End Caps, Large16AMO-Size-Material-Finish
| 304 Material Part # (7 Finish) |
316L Material Part # (7 Finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| 16AMO-8-304-7 | 16AMO-8-316L-7 | 8 | 0.44 | 8.583 |
| 16AMO-10-304-7 | 16AMO-10-316L-7 | 10 | 0.44 | 10.57 |
| 16AMO-12-304-7 | 16AMO-12-316L-7 | 12 | 0.56 | 12.58 |
Butt Weld End Caps16W-Size-Material-Finish
| 304 Material Part # (1 Finish) |
316L Material Part # (1 Finish) |
Size OD (in) |
A (in) |
|---|---|---|---|
| 16W-1-304-1 | 16W-1-316L | 1 | 0.38 |
| 16W-1.5-304-1 | 16W-1.5-316L | 1½ | 0.56 |
| 16W-2-304-1 | 16W-2-316L | 2 | 0.75 |
| 16W-2.5-304-1 | 16W-2.5-316L | 2½ | 1.00 |
| 16W-3-304-1 | 16W-3-316L | 3 | 1.25 |
| 16W-4-304-1 | 16W-4-316L | 4 | 1.50 |
| 16W-6-304-1 | 16W-6-316L | 6 | 2.25 |
| - | 16W-8-316L | 8 | 2.63 |

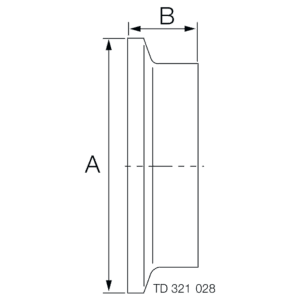

Tri-Clamp Thermometer Caps and Solid End Caps, No Tapped Hole23BMP-Size-S-1-Material-Finish
| 304 Material Part # (7 finish) |
316L Material Part # (7 finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| 23BMP-1-S-1-304-7 | 23BMP-1-S-1-316L-7 | 1 & 1½ | 1.98 | 0.63 |
| 23BMP-2-S-1-304-7 | 23BMP-2-S-1-316L-7 | 2 | 2.52 | 0.63 |
| 23BMP-2.5-S-1-304-7 | Contact CSI | 2½ | 3.05 | 0.63 |
| 23BMP-3-S-1-304-7 | 23BMP-3-S-1-316L-7 | 3 | 3.58 | 0.63 |
| Contact CSI | 23BMP-4-S-1-316L-7 | 4 | 4.69 | 0.63 |
Tri-Clamp Thermometer Caps, Tapped with NPT Threads23 bmp-size-material-finish
| 304 Material Part # (7 finish) |
316L Material Part # (7 finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| 23BMP-1.5X0.5-304-7 | 23BMP-1.5X0.5-316L-7 | 1½ x ½ | 1.98 | 0.63 |
| 23BMP-1.5X0.75-304-7 | 23BMP-1.5X0.75-316L-7 | 1½ x ¾ | 1.98 | 0.63 |
| 23BMP-2X0.75-304-7 | 23BMP-2X0.75-316L-7 | 2 x ¾ | 2.52 | 0.63 |
| 23BMP-2.5X0.75-304-7 | 23BMP-2.5X0.75-316L-7 | 2½ x ¾ | 3.05 | 0.63 |
| 23BMP-3X0.75-304-7 | 23BMP-3X0.75-316L-7 | 3 x ¾ | 3.58 | 0.63 |
| 23BMP-4X0.75-304-7 | 23BMP-4X0.75-316L-7 | 4 x ¾ | 4.69 | 0.63 |

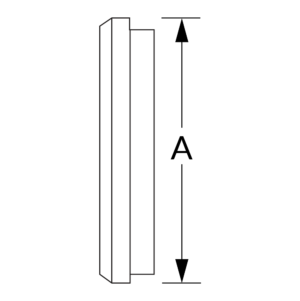

Bevel Seat Plain Solid End Cap16A-Size-Material-Finish
| 304 Material Part # (7 Finish) |
Size OD (in) |
A (in) |
|---|---|---|
| 16A-1-304-7 | 1 | 1.31 |
| 16A-1.5-304-7 | 1½ | 1.84 |
| 16A-2-304-7 | 2 | 2.38 |
| 16A-2.5-304-7 | 2½ | 2.91 |
| 16A-3-304-7 | 3 | 3.44 |
| 16A-4-304-7 | 4 | 4.50 |

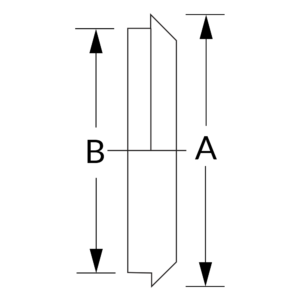

H-Line Male Solid End CapH-16A-14-Size-Material-Finish
| 304 Material Part # (7 Finish) |
316L Material Part # (7 Finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| H-16A-14-1.5-304-7 | H-16A-14-1.5-316L-7 | 1½ | 2.00 | 1.63 |
| H-16A-14-2-304-7 | H-16A-14-2-316L-7 | 2 | 2.50 | 2.13 |
| H-16A-14-2.5-304-7 | H-16A-14-2.5-316L-7 | 2½ | 3.03 | 2.63 |
| H-16A-14-3-304-7 | H-16A-14-3-316L-7 | 3 | 3.56 | 3.13 |
| H-16A-14-4-304-7 | H-16A-14-4-316L-7 | 4 | 4.69 | 4.09 |
HDI Male Solid End CapHDI-16A-14-Size-Material-Finish
| 304 Material Part # (7 Finish) |
316L Material Part # (7 Finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| HDI-16A-14-1.5-304-7 | HDI-16A-14-1.5-316L-7 | 1½ | 2.00 | 1.75 |
| HDI-16A-14-2-304-7 | HDI-16A-14-2-316L-7 | 2 | 2.66 | 2.25 |
| HDI-16A-14-2.5-304-7 | HDI-16A-14-2.5-316L-7 | 2½ | 3.31 | 2.75 |
| HDI-16A-14-3-304-7 | HDI-16A-14-3-316L-7 | 3 | 3.88 | 3.31 |
| HDI-16A-14-4-304-7 | HDI-16A-14-4-316L-7 | 4 | 4.88 | 4.31 |
HDI Female Solid End CapHDI-16A-15-Size-Material-Finish
| 304 Material Part # (7 Finish) |
316L Material Part # (7 Finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| HDI-16A-15-1.5-304-7 | HDI-16A-15-1.5-316L-7 | 1½ | 2.00 | 1.75 |
| HDI-16A-15-2-304-7 | HDI-16A-15-2-316L-7 | 2 | 2.66 | 2.25 |
| HDI-16A-15-2.5-304-7 | HDI-16A-15-2.5-316L-7 | 2½ | 3.31 | 2.75 |
| HDI-16A-15-3-304-7 | 人类发展指数- 16 a - 15 - 3 - 316 - l - 7所示 | 3 | 3.88 | 3.31 |
| HDI-16A-15-4-304-7 | HDI-16A-15-4-316L-7 | 4 | 4.88 | 4.31 |

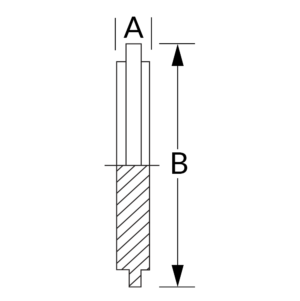

John Perry Plain Solid End Cap16AJP-Size-Material-Finish
| 304 Material Part # (7 Finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|
| 16AJP-1-304-7 | 1 | 0.44 | 1.31 |
| 16AJP-1.5-304-7 | 1½ | 0.50 | 1.84 |
| 16AJP-2-304-7 | 2 | 0.53 | 2.38 |
| 16AJP-2.5-304-7 | 2½ | 0.56 | 2.91 |
| 16AJP-3-304-7 | 3 | 0.63 | 3.44 |
| 16AJP-4-304-7 | 4 | 0.69 | 4.50 |
IPS Sch. 5 Tri-Clamp Solid End Cap16AMV-Size-Material-Finish
| 304 Material Part # (7 Finish) |
316L Material Part # (7 Finish) |
Size OD (in) |
A (in) |
B (in) |
|---|---|---|---|---|
| 16AMV-3-304-7 | 16AMV-3-316L-7 | 3 | 0.31 | 4.13 |
| 16AMV-4-304-7 | 16AMV-4-316L-7 | 4 | 0.38 | 5.13 |
| 16AMV-6-304-7 | 16AMV-6-316L-7 | 6 | 0.44 | 7.20 |
| 16AMV-8-304-7 | 16AMV-8-316L-7 | 8 | 0.44 | 9.20 |
More End Caps
For end caps that meet BPE standards or stricter requirements, visit outBPE End Capspage. Need more corrosion resistance? CSI also offersAL-6XN Alloy End CapsandHastelloy C-22 End Caps.
Still don't see what you need? Call CSI for configurations not listed or forcustom fabrications.
